Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •32 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as reversing switchNo
Version as maintenance-/service switchYes
Version as safety switchNo
Version as emergency stop installationNo
Number of switches1
Rated permanent current Iu160A
Max. rated operation voltage Ue AC-V
Rated operating voltage800 - 800V
Rated operation power at AC-23, 400 V-kW
Rated permanent current at AC-23, 400 V-A
Rated permanent current at AC-21, 400 V-A
Rated operation power at AC-3, 400 V-kW
Rated short-time withstand current lcw2.5kA
Number of poles4
Switching power at 400 V-kW
Conditioned rated short-circuit current Iq50kA
Number of auxiliary contacts as normally open contact0
Suitable for front mounting 4-holeNo
Suitable for floor mountingNo
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for intermediate mountingNo
Device constructionComplete device in housing
Motor drive optionalNo
Number of auxiliary contacts as normally closed contact0
Suitable for distribution board installationNo
Type of control elementOther
Number of auxiliary contacts as change-over contact0
Colour control elementBlack
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP20
Height123mm
Degree of protection (NEMA)Other
Width95.5mm
InterlockableNo
With pre-assembled cablingNo
Width in number of modular spacings-
Depth74.6mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

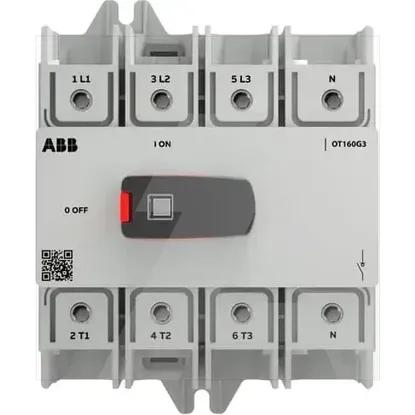

1SCA163848R1001 | OT160G3-4BSN2/32
