Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •32 KOM
- •ABB
Technical specifications
Version as main switchYes
Version as safety switchNo
Version as reversing switchNo
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC-V
Version as emergency stop installationNo
Rated permanent current at AC-23, 400 V-A
Number of switches1
Rated operating voltage800 - 800V
Rated permanent current at AC-21, 400 V-A
Rated short-time withstand current lcw2.5kA
Rated permanent current Iu100A
Conditioned rated short-circuit current Iq50kA
Rated operation power at AC-23, 400 V-kW
Switching power at 400 V-kW
Number of poles3
Rated operation power at AC-3, 400 V-kW
Device constructionComplete device in housing
Suitable for floor mountingNo
Motor drive integratedNo
Number of auxiliary contacts as normally open contact0
Height123mm
Suitable for front mounting 4-holeNo
Type of electrical connection of main circuitScrew connection
Width70mm
Number of auxiliary contacts as normally closed contact0
Motor drive optionalNo
Number of auxiliary contacts as change-over contact0
Voltage release optionalNo
Suitable for front mounting centreNo
Type of control elementOther
Degree of protection (IP), front sideIP20
InterlockableNo
Degree of protection (NEMA)Other
With pre-assembled cablingNo
Suitable for distribution board installationYes
Suitable for intermediate mountingNo
Width in number of modular spacings-
Depth74mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

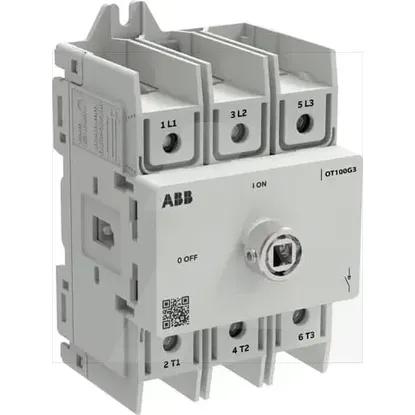

1SCA163860R1001 | OT100G3-3BSU/32
