Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodWall surface mounted
Material housingAluminium
RAL-number housing9010
Lamp typeLED not exchangeable
Nominal voltage220 - 240V
Colour housingWhite
Exchangeable control gearNo
Material coverPlastic, opal
Type of control gearLED operating device current-controlled
Voltage typeDC
Energy efficiency class of the light source according to EU regulation 2019/2015A
Constant light output (CLO)No
Light distributorDiffuser lens/optic/panel
Luminaire with limited surface temperature, sign "D“No
Degree of protection (IP)IP65
Protection classI
Impact strengthIK10
Max. system power9.3W
Rated luminous flux according to IEC 62722-2-1820lm
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Monitoring equipmentSafety module for monitoring (central feeded system)
With pictogramNo
FunctionEscape route lighting
Suitable for continuous circuitNo
Suitable for standby switchingNo
Power supply systemCentral (central battery)
With remote switch connectionYes
With remote controlNo
With light sourceYes
Lamp holderNone
Luminous flux in standby mode820lm
Number of poles3
Height/depth74mm
Colour temperature4000 - 4000K
Width272mm
Power factor0.87
Length272mm
Connection typePlug-in connection
Conductor cross section2.5mm²
Type of wiringSuitable for through wiring
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

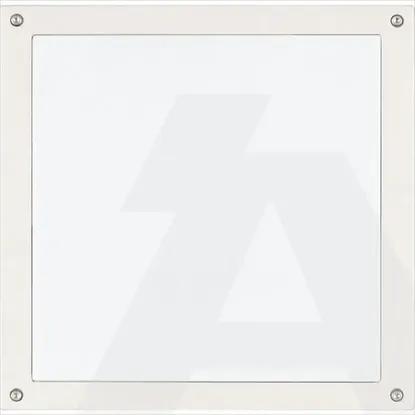

40071355750 | Emergency luminaire 83022.1 LED, Cg-s, IP65, sqaure bezel, aluminium, white
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Wall surface mounted
Material housing
Aluminium
RAL-number housing
9010
Lamp type
LED not exchangeable
Nominal voltage
220 .. 240V
Colour housing
White
Exchangeable control gear
Material cover
Plastic, opal
Type of control gear
LED operating device current-controlled
Voltage type
DC
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Constant light output (CLO)
Light distributor
Diffuser lens/optic/panel
Luminaire with limited surface temperature, sign "D“
Degree of protection (IP)
IP65
Protection class
I
Impact strength
IK10
Max. system power
9.3W
Rated luminous flux according to IEC 62722-2-1
820lm
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
Monitoring equipment
Safety module for monitoring (central feeded system)
With pictogram
Function
Escape route lighting
Suitable for continuous circuit
Suitable for standby switching
Power supply system
Central (central battery)
With remote switch connection
With remote control
With light source
Lamp holder
None
Luminous flux in standby mode
820lm
Number of poles
3
Height/depth
74mm
Colour temperature
4000 .. 4000K
Width
272mm
Power factor
0.87
Length
272mm
Connection type
Plug-in connection
Conductor cross section
2.5mm²
Type of wiring
Suitable for through wiring
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
