Technical specifications
Mounting methodWall surface mounted
FunctionEscape route lighting
Suitable for standby switchingNo
With pictogramNo
Monitoring equipmentSafety module for monitoring (central feeded system)
Suitable for continuous circuitNo
Power supply systemCentral (central battery)
With remote switch connectionYes
Lamp typeLED not exchangeable
With remote controlNo
With light sourceYes
Material housingAluminium
Lamp holderNone
Material coverPlastic, opal
RAL-number housing9010
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Colour housingWhite
Voltage typeDC
Exchangeable control gearNo
Light distributorDiffuser lens/optic/panel
Energy efficiency class of the light source according to EU regulation 2019/2015A
Degree of protection (IP)IP65
Luminous flux in standby mode850lm
Colour temperature4000 - 4000K
Height/depth98mm
Outer diameter266mm
Power factor0.87
Impact strengthIK10
Luminaire with limited surface temperature, sign "D“No
Constant light output (CLO)No
Max. system power9.3W
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Protection classI
Rated luminous flux according to IEC 62722-2-1820lm
Type of wiringSuitable for through wiring
Connection typePlug-in connection
Conductor cross section2.5mm²
Number of poles3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

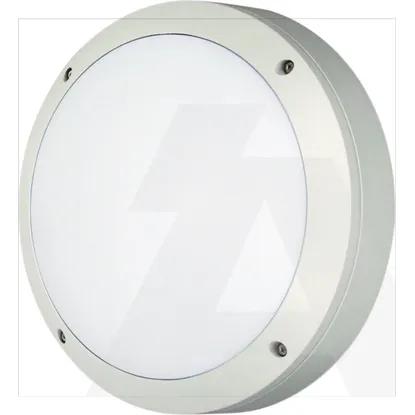

40071355751 | Emergency luminaire 84022.1 LED, Cg-s, IP65, round, aluminium, white
