Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodBuilt-in
Suitable for standby switchingNo
FunctionEscape route lighting
Suitable for continuous circuitNo
Monitoring equipmentSafety module for monitoring (central feeded system)
With remote switch connectionYes
With pictogramNo
With remote controlNo
With light sourceYes
Power supply systemCentral (central battery)
Lamp holderNone
Lamp typeLED not exchangeable
Colour housingWhite
Material coverWithout cover
Voltage typeDC
Material housingPlastic
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Exchangeable control gearNo
Light distributorFocal lens
Constant light output (CLO)No
Width80mm
Colour temperature4000 - 4000K
Height/depth44mm
Impact strengthIK03
Degree of protection (IP)IP41
Protection classII
Rated luminous flux according to IEC 62722-2-1300lm
Luminaire with limited surface temperature, sign "D“No
Max. system power3.9W
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Power factor0.59
Built-in diameter64mm
Length80mm
Outer diameter80mm
Type of wiringSuitable for through wiring
Built-in height/depth40mm
Connection typePlug-in connection
Conductor cross section2.5mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

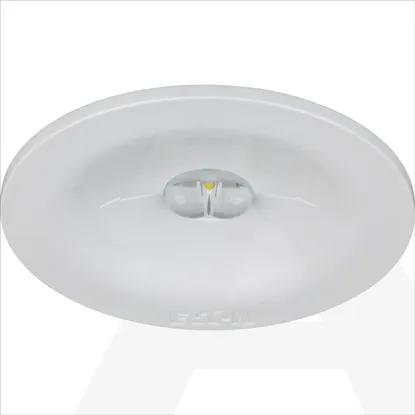

40071356730 | Emergency luminaire GuideLed SL 13011.2, Cg-s, recessed, asymmetric, exit route
