Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodBuilt-in
Monitoring equipmentSafety module for monitoring (central feeded system)
With pictogramNo
FunctionEscape route lighting
Suitable for continuous circuitNo
Suitable for standby switchingNo
With remote switch connectionYes
With remote controlNo
Power supply systemCentral (central battery)
Lamp holderNone
RAL-number housing9016
Colour housingWhite
Lamp typeLED not exchangeable
Material coverWithout cover
Exchangeable control gearNo
Constant light output (CLO)No
Energy efficiency class of the light source according to EU regulation 2019/2015A
Degree of protection (IP)IP41
Impact strengthIK03
Light distributorFocal lens
Luminaire with limited surface temperature, sign "D“No
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Max. system power3.9W
Nominal voltage220 - 240V
Protection classII
Material housingPlastic
Voltage typeDC
With light sourceYes
Type of control gearLED operating device current-controlled
Rated luminous flux according to IEC 62722-2-1320lm
Luminous flux in standby mode320lm
Colour temperature4000 - 4000K
Width80mm
Height/depth44mm
Power factor0.59
Outer diameter80mm
Built-in height/depth40mm
Length80mm
Conductor cross section2.5mm²
Number of poles3
Built-in diameter68mm
Type of wiringSuitable for through wiring
Connection typePlug-in connection
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

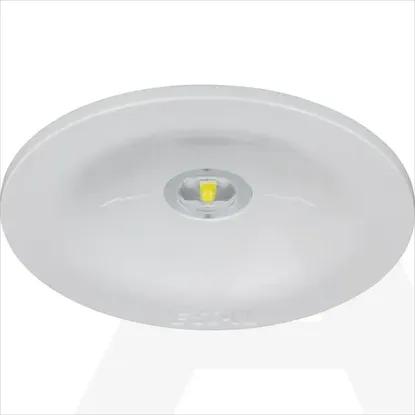

40071356731 | Emergency luminaire GuideLed SL 13021.2, Cg-s, recessed, symmetric,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Built-in
Monitoring equipment
Safety module for monitoring (central feeded system)
With pictogram
Function
Escape route lighting
Suitable for continuous circuit
Suitable for standby switching
With remote switch connection
With remote control
Power supply system
Central (central battery)
Lamp holder
None
RAL-number housing
9016
Colour housing
White
Lamp type
LED not exchangeable
Material cover
Without cover
Exchangeable control gear
Constant light output (CLO)
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Degree of protection (IP)
IP41
Impact strength
IK03
Light distributor
Focal lens
Luminaire with limited surface temperature, sign "D“
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
Max. system power
3.9W
Nominal voltage
220 .. 240V
Protection class
II
Material housing
Plastic
Voltage type
DC
With light source
Type of control gear
LED operating device current-controlled
Rated luminous flux according to IEC 62722-2-1
320lm
Luminous flux in standby mode
320lm
Colour temperature
4000 .. 4000K
Width
80mm
Height/depth
44mm
Power factor
0.59
Outer diameter
80mm
Built-in height/depth
40mm
Length
80mm
Conductor cross section
2.5mm²
Number of poles
3
Built-in diameter
68mm
Type of wiring
Suitable for through wiring
Connection type
Plug-in connection
