Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodCeiling surface mounting
FunctionEscape route lighting
With remote controlNo
Suitable for standby switchingNo
With remote switch connectionYes
Monitoring equipmentSafety module for monitoring (central feeded system)
Suitable for continuous circuitNo
With pictogramNo
Power supply systemCentral (central battery)
Lamp typeLED not exchangeable
With light sourceYes
Lamp holderNone
Material housingPlastic
Material coverWithout cover
RAL-number housing9016
Colour housingWhite
Voltage typeDC
Exchangeable control gearNo
Nominal voltage220 - 240V
Type of control gearLED operating device current-controlled
Light distributorFocal lens
Energy efficiency class of the light source according to EU regulation 2019/2015A
Constant light output (CLO)No
Degree of protection (IP)IP41
Max. system power3.9W
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Luminous flux in standby mode320lm
Length124mm
Power factor0.59
Luminaire with limited surface temperature, sign "D“No
Type of wiringSuitable for through wiring
Rated luminous flux according to IEC 62722-2-1320lm
Height/depth32mm
Protection classI
Impact strengthIK03
Width124mm
Conductor cross section2.5mm²
Number of poles3
Connection typePlug-in connection
Colour temperature4000 - 4000K
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

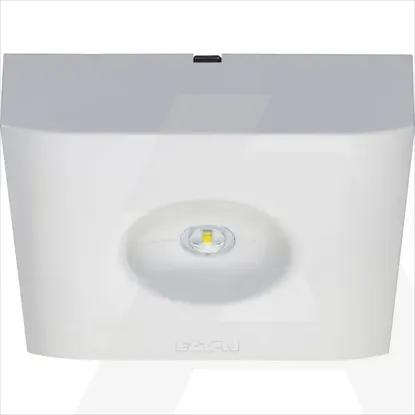

40071356733 | Emergency luminaire GuideLed SL 13022.2, Cg-s, surface, symmetric,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Ceiling surface mounting
Function
Escape route lighting
With remote control
Suitable for standby switching
With remote switch connection
Monitoring equipment
Safety module for monitoring (central feeded system)
Suitable for continuous circuit
With pictogram
Power supply system
Central (central battery)
Lamp type
LED not exchangeable
With light source
Lamp holder
None
Material housing
Plastic
Material cover
Without cover
RAL-number housing
9016
Colour housing
White
Voltage type
DC
Exchangeable control gear
Nominal voltage
220 .. 240V
Type of control gear
LED operating device current-controlled
Light distributor
Focal lens
Energy efficiency class of the light source according to EU regulation 2019/2015
A
Constant light output (CLO)
Degree of protection (IP)
IP41
Max. system power
3.9W
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
Luminous flux in standby mode
320lm
Length
124mm
Power factor
0.59
Luminaire with limited surface temperature, sign "D“
Type of wiring
Suitable for through wiring
Rated luminous flux according to IEC 62722-2-1
320lm
Height/depth
32mm
Protection class
I
Impact strength
IK03
Width
124mm
Conductor cross section
2.5mm²
Number of poles
3
Connection type
Plug-in connection
Colour temperature
4000 .. 4000K
