Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodBuilt-in
FunctionEscape route lighting
Monitoring equipmentSafety module for monitoring (central feeded system)
Suitable for standby switchingNo
With pictogramNo
Suitable for continuous circuitNo
Power supply systemCentral (central battery)
Height/depth44mm
Material housingPlastic
Energy efficiency class of the light source according to EU regulation 2019/2015A
With remote switch connectionYes
Lamp holderNone
Exchangeable control gearNo
Length80mm
Max. system power3.9W
Impact strengthIK03
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Protection classII
With remote controlNo
Conductor cross section2.5mm²
Degree of protection (IP)IP41
Power factor0.59
Built-in height/depth40mm
Colour housingWhite
Colour temperature4000 - 4000K
With light sourceYes
Nominal voltage220 - 240V
Type of wiringSuitable for through wiring
Width80mm
Built-in diameter68mm
RAL-number housing9016
Outer diameter80mm
Number of poles3
Rated luminous flux according to IEC 62722-2-1310lm
Lamp typeLED not exchangeable
Connection typePlug-in connection
Voltage typeDC
Material coverWithout cover
Luminous flux in standby mode320lm
Luminaire with limited surface temperature, sign "D“No
Constant light output (CLO)No
Type of control gearLED operating device current-controlled
Light distributorFocal lens
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

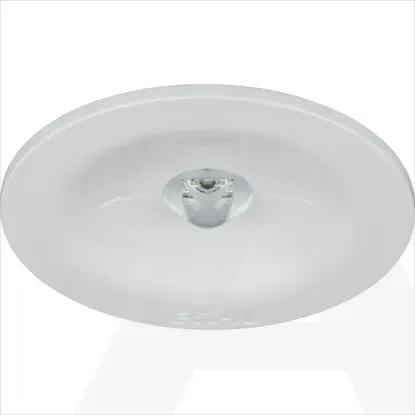

40071356735 | Emergency luminaire GuideLed SL 13041.2, Cg-s, recessed, symmetric,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Built-in
Function
Escape route lighting
Monitoring equipment
Safety module for monitoring (central feeded system)
Suitable for standby switching
With pictogram
Suitable for continuous circuit
Power supply system
Central (central battery)
Height/depth
44mm
Material housing
Plastic
Energy efficiency class of the light source according to EU regulation 2019/2015
A
With remote switch connection
Lamp holder
None
Exchangeable control gear
Length
80mm
Max. system power
3.9W
Impact strength
IK03
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
Protection class
II
With remote control
Conductor cross section
2.5mm²
Degree of protection (IP)
IP41
Power factor
0.59
Built-in height/depth
40mm
Colour housing
White
Colour temperature
4000 .. 4000K
With light source
Nominal voltage
220 .. 240V
Type of wiring
Suitable for through wiring
Width
80mm
Built-in diameter
68mm
RAL-number housing
9016
Outer diameter
80mm
Number of poles
3
Rated luminous flux according to IEC 62722-2-1
310lm
Lamp type
LED not exchangeable
Connection type
Plug-in connection
Voltage type
DC
Material cover
Without cover
Luminous flux in standby mode
320lm
Luminaire with limited surface temperature, sign "D“
Constant light output (CLO)
Type of control gear
LED operating device current-controlled
Light distributor
Focal lens
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
