Details
- •Luminaires
- •Emergency luminaire
- •1 KOM
- •EATON
Technical specifications
Mounting methodCeiling surface mounting
With pictogramNo
Monitoring equipmentSafety module for monitoring (central feeded system)
FunctionEscape route lighting
Suitable for standby switchingNo
With remote controlNo
Suitable for continuous circuitNo
With remote switch connectionYes
Power supply systemCentral (central battery)
With light sourceYes
Lamp typeLED not exchangeable
Lamp holderNone
Material housingPlastic
Colour housingWhite
Material coverWithout cover
Max. system power3.9W
Voltage typeDC
Nominal voltage220 - 240V
Power factor0.59
Type of control gearLED operating device current-controlled
Exchangeable control gearNo
Light distributorFocal lens
Degree of protection (IP)IP41
Impact strengthIK03
Luminaire with limited surface temperature, sign "D“No
Constant light output (CLO)No
Protection classI
Colour temperature4000 - 4000K
Height/depth32mm
Rated ambient temperature according to IEC62722-2-1-20 - 40°C
Type of wiringSuitable for through wiring
Width124mm
Conductor cross section2.5mm²
Rated luminous flux according to IEC 62722-2-1310lm
Connection typePlug-in connection
Length124mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

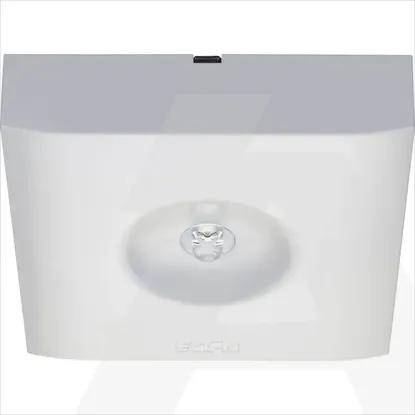

40071356737 | Emergency luminaire GuideLed SL 13042.2, Cg-s, surface, symmetric,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Luminaires
- Emergency luminaire
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Mounting method
Ceiling surface mounting
With pictogram
Monitoring equipment
Safety module for monitoring (central feeded system)
Function
Escape route lighting
Suitable for standby switching
With remote control
Suitable for continuous circuit
With remote switch connection
Power supply system
Central (central battery)
With light source
Lamp type
LED not exchangeable
Lamp holder
None
Material housing
Plastic
Colour housing
White
Material cover
Without cover
Max. system power
3.9W
Voltage type
DC
Nominal voltage
220 .. 240V
Power factor
0.59
Type of control gear
LED operating device current-controlled
Exchangeable control gear
Light distributor
Focal lens
Degree of protection (IP)
IP41
Impact strength
IK03
Luminaire with limited surface temperature, sign "D“
Constant light output (CLO)
Protection class
I
Colour temperature
4000 .. 4000K
Height/depth
32mm
Rated ambient temperature according to IEC62722-2-1
-20 .. 40°C
Type of wiring
Suitable for through wiring
Width
124mm
Conductor cross section
2.5mm²
Rated luminous flux according to IEC 62722-2-1
310lm
Connection type
Plug-in connection
Length
124mm
