Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Mains voltage450 - 660V
Number of HW-interfaces other1
Mains frequency50/60 Hz
Number of phases input3
Max. output voltage600V
Number of phases output3
Max. output frequency500Hz
Nominal output current I2N22A
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance10%
Max. output at quadratic load at rated output voltage15kW
Number of analogue outputs2
Max. output at linear load at rated output voltage15kW
Power consumption450W
Number of digital inputs5
With control elementYes
Number of analogue inputs2
Number of digital outputs2
Supporting protocol for TCP/IPYes
Supporting protocol for PROFIBUSYes
Application in industrial area permittedYes
Supporting protocol for INTERBUSNo
With optical interfaceNo
With PC connectionYes
Integrated breaking resistanceYes
4-quadrant operation possibleYes
Type of converterU converter
Degree of protection (IP)IP66
Degree of protection (NEMA)4X
Height310mm
Width210.5mm
Depth235mm
Supporting protocol for CANYes
Supporting protocol for Data-HighwayNo
Supporting protocol for ASINo
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IOYes
Supporting protocol for SERCOSNo
Supporting protocol for DeviceNetNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SUCONETNo
Supporting protocol for ModbusYes
Supporting protocol for EtherNet/IPYes
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for KNXNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for LONNo
Supporting protocol for other bus systemsYes
Number of interfaces PROFINET1
Number of HW-interfaces RS-4852
Supporting protocol for BACnetNo
Supporting protocol for PROFIsafeNo
Supporting protocol for Foundation FieldbusNo
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces serial TTY0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

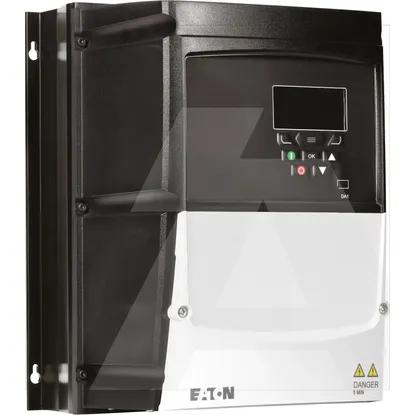

DA1-35022NB-B66O | Frequency invertor 3x575/3x575VAC 15KW 22A IP66, Brake chopper, PCB protection
