Details
- •Low-voltage industrial components
- •Frequency converter =< 1 kV
- •1 KOM
- •EATON
Technical specifications
Mains voltage450 - 660V
Number of HW-interfaces other0
With optical interfaceNo
With PC connectionYes
Mains frequency50/60 Hz
Number of phases output3
Number of phases input3
Max. output frequency500Hz
Max. output voltage600V
Max. output at quadratic load at rated output voltage0.75kW
Nominal output current I2N2.1A
Max. output at linear load at rated output voltage0.75kW
Power consumption22.5W
Relative symmetric net frequency tolerance10%
Relative symmetric net voltage tolerance10%
Number of digital outputs2
Number of digital inputs5
Application in industrial area permittedYes
Integrated breaking resistanceYes
Type of converterU converter
4-quadrant operation possibleYes
Degree of protection (IP)IP66
Degree of protection (NEMA)4X
Height257mm
Width188mm
Depth182mm
Supporting protocol for CANYes
Supporting protocol for SUCONETNo
Supporting protocol for KNXNo
Supporting protocol for TCP/IPYes
Application in domestic- and commercial area permittedYes
Supporting protocol for PROFIBUSYes
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for LONNo
Supporting protocol for SERCOSNo
Supporting protocol for PROFINET IOYes
Supporting protocol for Data-HighwayNo
Supporting protocol for PROFINET CBANo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for DeviceNetNo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for INTERBUS-SafetyNo
Number of analogue outputs2
With control elementYes
Supporting protocol for INTERBUSNo
Number of analogue inputs2
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of interfaces PROFINET0
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for PROFIsafeNo
Number of HW-interfaces RS-4852
Supporting protocol for other bus systemsYes
Supporting protocol for BACnetNo
Supporting protocol for SafetyBUS pNo
Number of HW-interfaces RS-2320
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Number of HW-interfaces parallel0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

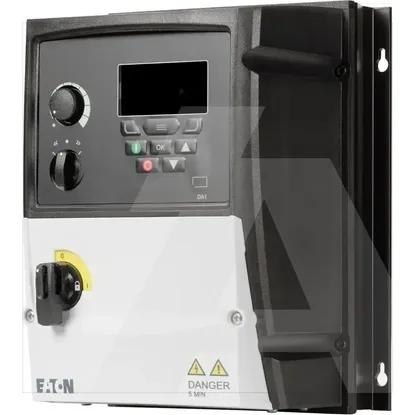

DA1-352D1NB-B6SO | Frequency invertor 3x575/3x575VAC 0.75kW 2.1A IP66, local control, Brake chopper,
