Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •5 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ230 - 230V
Voltage type for actuatingAC
Rated control supply voltage Us at AC 60HZ230 - 230V
Number of normally open contacts as main contact3
Type of electrical connection of main circuitScrew connection
Number of normally closed contacts as main contact0
Rated control supply voltage Us at DC0 - 0V
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-3, 400 V9A
Rated operation power at AC-3, 400 V4kW
Rated operation current Ie at AC-4, 400 V6.6A
Rated operation power at AC-4, 400 V3kW
Rated operation power NEMA3.7kW
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact0
Modular versionNo
Width45mm
Height58mm
Depth52mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

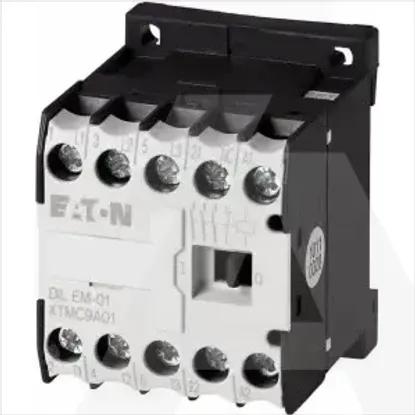

DILEM-01(230V50/60HZ) | Miniature contactor 4kW, 3pole+1NC, Uc=230V/50Hz, 230V/60Hz
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 5 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
230 .. 230V
Voltage type for actuating
AC
Rated control supply voltage Us at AC 60HZ
230 .. 230V
Number of normally open contacts as main contact
3
Type of electrical connection of main circuit
Screw connection
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at DC
0 .. 0V
Operating voltage at AC 50 Hz
24 .. 690V
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Rated operation current Ie at AC-3, 400 V
9A
Rated operation power at AC-3, 400 V
4kW
Rated operation current Ie at AC-4, 400 V
6.6A
Rated operation power at AC-4, 400 V
3kW
Rated operation power NEMA
3.7kW
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
0
Modular version
Width
45mm
Height
58mm
Depth
52mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
