Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Rated control supply voltage Us at DC110 - 110V
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Rated operation current Ie at AC-4, 400 V7A
Number of normally open contacts as main contact3
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-3, 400 V12A
Rated operation power at AC-4, 400 V3kW
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V5.5kW
Modular versionNo
Number of auxiliary contacts as normally closed contact1
Rated operation power NEMA7.4kW
Width45mm
Depth75mm
Height68mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

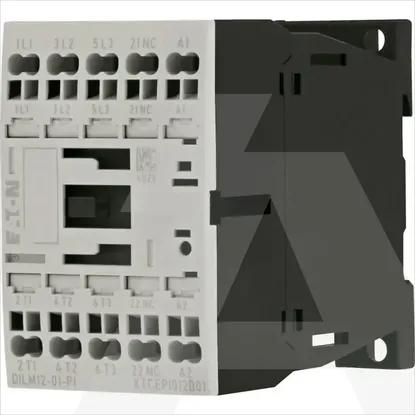

DILM12-01(110VDC)-PI | Contactor 12A/5,5kW AC-3, 22A AC-1, 3pole+1nc, Push-In terminals, Uc=110V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Voltage type for actuating
DC
Rated control supply voltage Us at DC
110 .. 110V
Number of normally closed contacts as main contact
0
Type of electrical connection of main circuit
Spring clamp connection
Rated operation current Ie at AC-4, 400 V
7A
Number of normally open contacts as main contact
3
Operating voltage at AC 50 Hz
24 .. 690V
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Rated operation current Ie at AC-3, 400 V
12A
Rated operation power at AC-4, 400 V
3kW
Number of auxiliary contacts as normally open contact
0
Rated operation power at AC-3, 400 V
5.5kW
Modular version
Number of auxiliary contacts as normally closed contact
1
Rated operation power NEMA
7.4kW
Width
45mm
Depth
75mm
Height
68mm
