Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC12 - 12V
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-3, 400 V15.5A
Rated operation current Ie at AC-4, 400 V7A
Rated operation power at AC-3, 400 V7.5kW
Rated operation power NEMA7.4kW
Rated operation power at AC-4, 400 V3kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Modular versionNo
Height68mm
Depth75mm
Width45mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

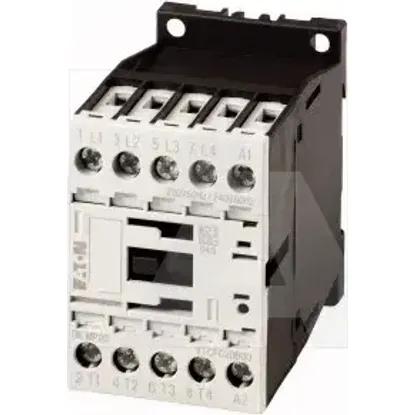

DILM15-01(12VDC) | Contactor 15A/7,5kW AC-3, 22A AC-1, 3pole+1nc, Uc=12V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
12 .. 12V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Voltage type for actuating
DC
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Type of electrical connection of main circuit
Screw connection
Operating voltage at AC 50 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-3, 400 V
15.5A
Rated operation current Ie at AC-4, 400 V
7A
Rated operation power at AC-3, 400 V
7.5kW
Rated operation power NEMA
7.4kW
Rated operation power at AC-4, 400 V
3kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Modular version
Height
68mm
Depth
75mm
Width
45mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
