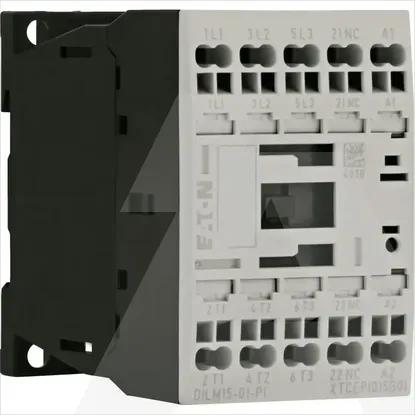

DILM15-01(220VDC)-PI | Contactor 15A/7,5kW AC-3, 22A AC-1, 3pole+1nc, Push-In terminals, Uc=220V DC
Code: 2034668
ManufacturerEaton
Catalog numberEP-401044
TypePower contactor, AC switching
CategoryPower contactor, AC switching
EAN code4015082964580
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated operation current Ie at AC-1, 400 V22A
Number of normally open contacts as main contact3
Rated operation current Ie at AC-4, 400 V7A
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Rated control supply voltage Us at DC220 - 220V
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Rated operation power at AC-4, 400 V3kW
Rated operation power NEMA7.4kW
Modular versionNo
Width45mm
Depth75mm
Height68mm
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 400 V15.5A
Rated control supply voltage Us at AC 50HZ0 - 0V
