Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ48 - 48V
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Number of normally open contacts as main contact3
Rated operation current Ie at AC-3, 400 V15.5A
Rated operation power at AC-3, 400 V7.5kW
Rated operation power at AC-4, 400 V3kW
Rated operation current Ie at AC-4, 400 V7A
Rated operation power NEMA7.4kW
Modular versionNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact1
Width45mm
Height68mm
Depth75mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

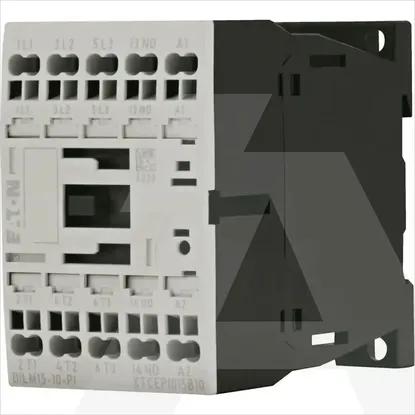

DILM15-10(48V50HZ)-PI | Contactor 15A/7,5kW AC-3, 22A AC-1, 3pole+1no, Push-In terminals, Uc=48/50Hz
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
48 .. 48V
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at DC
0 .. 0V
Voltage type for actuating
AC
Number of normally closed contacts as main contact
0
Operating voltage at AC 50 Hz
24 .. 690V
Type of electrical connection of main circuit
Spring clamp connection
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-1, 400 V
22A
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-3, 400 V
15.5A
Rated operation power at AC-3, 400 V
7.5kW
Rated operation power at AC-4, 400 V
3kW
Rated operation current Ie at AC-4, 400 V
7A
Rated operation power NEMA
7.4kW
Modular version
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
1
Width
45mm
Height
68mm
Depth
75mm
