Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC48 - 48V
Voltage type for actuatingDC
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-3, 400 V15.5A
Rated operation current Ie at AC-1, 400 V22A
Rated operation power at AC-3, 400 V7.5kW
Rated operation current Ie at AC-4, 400 V7A
Rated operation power at AC-4, 400 V3kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation power NEMA7.4kW
Modular versionNo
Height68mm
Width45mm
Depth75mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

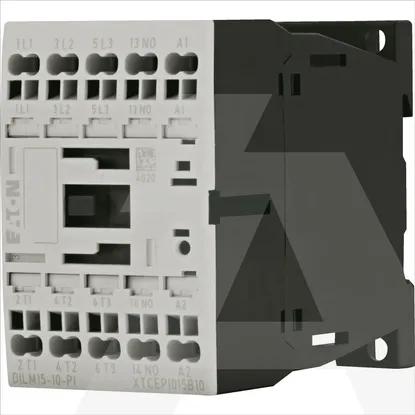

DILM15-10(48VDC)-PI | Contactor 15A/7,5kW AC-3, 22A AC-1, 3pole+1no, Push-In terminals, Uc=48V DC
