Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Type of electrical connection of main circuitScrew connection
Operating voltage at AC 50 Hz24 - 690V
Number of normally closed contacts as main contact0
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC0 - 12V
Voltage type for actuatingDC
Number of normally open contacts as main contact3
Rated operation current Ie at AC-1, 400 V22A
Rated operation power NEMA2.2kW
Rated operation current Ie at AC-4, 400 V5A
Width45mm
Depth75mm
Rated operation power at AC-4, 400 V2.2kW
Modular versionNo
Operating voltage at AC 60 Hz24 - 690V
Height68mm
Rated operation power at AC-3, 400 V3kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 400 V7A
Rated control supply voltage Us at AC 50HZ0 - 0V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

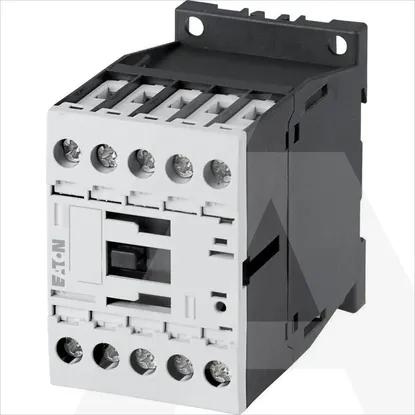

DILM7-01(12VDC) | Contactor 7A/3kW AC-3, 22A AC-1, 3pole+1NC, Uc=12V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Type of electrical connection of main circuit
Screw connection
Operating voltage at AC 50 Hz
24 .. 690V
Number of normally closed contacts as main contact
0
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated control supply voltage Us at DC
0 .. 12V
Voltage type for actuating
DC
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-1, 400 V
22A
Rated operation power NEMA
2.2kW
Rated operation current Ie at AC-4, 400 V
5A
Width
45mm
Depth
75mm
Rated operation power at AC-4, 400 V
2.2kW
Modular version
Operating voltage at AC 60 Hz
24 .. 690V
Height
68mm
Rated operation power at AC-3, 400 V
3kW
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
7A
Rated control supply voltage Us at AC 50HZ
0 .. 0V
