Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Rated control supply voltage Us at DC220 - 220V
Number of normally open contacts as main contact3
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitSpring clamp connection
Rated operation current Ie at AC-3, 400 V7A
Voltage type for actuatingDC
Rated operation power at AC-3, 400 V3kW
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-4, 400 V5A
Rated operation power at AC-4, 400 V2.2kW
Number of auxiliary contacts as normally closed contact0
Modular versionNo
Depth75mm
Width45mm
Number of auxiliary contacts as normally open contact1
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation current Ie at AC-1, 400 V22A
Rated operation power NEMA2.2kW
Height68mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

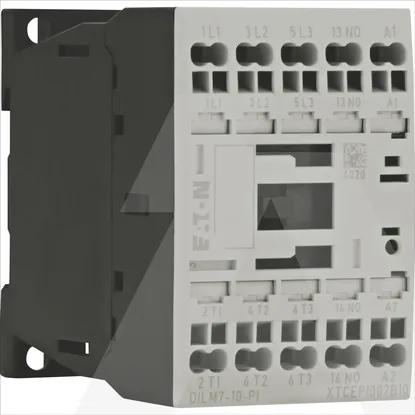

DILM7-10(220VDC)-PI | Contactor 7A/3kW AC-3, 22A AC-1, 3pole+1NO, Push-In terminals, Uc=220V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Rated control supply voltage Us at DC
220 .. 220V
Number of normally open contacts as main contact
3
Operating voltage at AC 60 Hz
24 .. 690V
Operating voltage at AC 50 Hz
24 .. 690V
Type of electrical connection of main circuit
Spring clamp connection
Rated operation current Ie at AC-3, 400 V
7A
Voltage type for actuating
DC
Rated operation power at AC-3, 400 V
3kW
Number of normally closed contacts as main contact
0
Rated operation current Ie at AC-4, 400 V
5A
Rated operation power at AC-4, 400 V
2.2kW
Number of auxiliary contacts as normally closed contact
0
Modular version
Depth
75mm
Width
45mm
Number of auxiliary contacts as normally open contact
1
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation current Ie at AC-1, 400 V
22A
Rated operation power NEMA
2.2kW
Height
68mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
