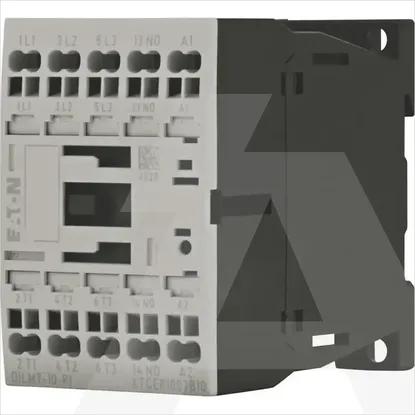

DILM7-10(48VDC)-PI | Contactor 7A/3kW AC-3, 22A AC-1, 3pole+1NO, Push-In terminals, Uc=48V DC
Code: 2034700
ManufacturerEaton
Catalog numberEP-401026
TypePower contactor, AC switching
CategoryPower contactor, AC switching
EAN code4015082964467
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Number of normally open contacts as main contact3
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V5A
Rated control supply voltage Us at DC48 - 48V
Rated operation power NEMA2.2kW
Rated operation power at AC-4, 400 V2.2kW
Width45mm
Modular versionNo
Depth75mm
Height68mm
Rated operation power at AC-3, 400 V3kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V7A
Rated control supply voltage Us at AC 50HZ0 - 0V
