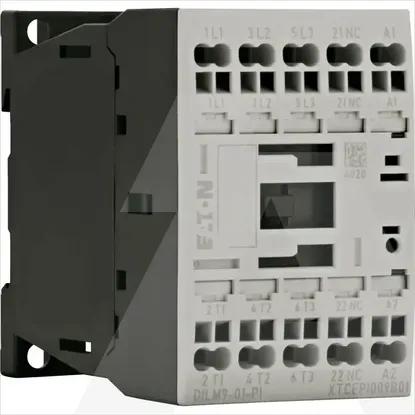

DILM9-01(220VDC)-PI | Contactor 9A/4kW AC-3, 22A AC-1, 3pole+1nc, Push-In terminals, Uc=220V DC
Code: 2034703
ManufacturerEaton
Catalog numberEP-401037
TypePower contactor, AC switching
CategoryPower contactor, AC switching
EAN code4015082964535
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated control supply voltage Us at DC220 - 220V
Rated control supply voltage Us at AC 60HZ0 - 0V
Number of normally closed contacts as main contact0
Voltage type for actuatingDC
Number of normally open contacts as main contact3
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 50 Hz24 - 690V
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation power at AC-4, 400 V2.5kW
Rated operation current Ie at AC-4, 400 V6A
Rated operation power NEMA3.7kW
Width45mm
Depth75mm
Modular versionNo
Height68mm
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 400 V9A
Rated control supply voltage Us at AC 50HZ0 - 0V
