Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ0 - 0V
Voltage type for actuatingDC
Rated control supply voltage Us at DC110 - 110V
Type of electrical connection of main circuitSpring clamp connection
Number of normally open contacts as main contact3
Rated operation current Ie at AC-4, 400 V6A
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated operation power NEMA3.7kW
Height68mm
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact1
Modular versionNo
Depth75mm
Operating voltage at AC 50 Hz24 - 690V
Width45mm
Number of normally closed contacts as main contact0
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-3, 400 V9A
Rated operation current Ie at AC-1, 400 V22A
Rated operation power at AC-4, 400 V2.5kW
Rated operation power at AC-3, 400 V4kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

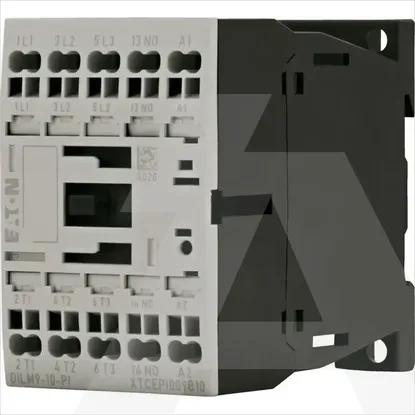

DILM9-10(110VDC)-PI | Contactor 9A/4kW AC-3, 22A AC-1, 3pole+1no, Push-In terminals, Uc=110V DC
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
0 .. 0V
Voltage type for actuating
DC
Rated control supply voltage Us at DC
110 .. 110V
Type of electrical connection of main circuit
Spring clamp connection
Number of normally open contacts as main contact
3
Rated operation current Ie at AC-4, 400 V
6A
Rated control supply voltage Us at AC 60HZ
0 .. 0V
Rated operation power NEMA
3.7kW
Height
68mm
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
1
Modular version
Depth
75mm
Operating voltage at AC 50 Hz
24 .. 690V
Width
45mm
Number of normally closed contacts as main contact
0
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-3, 400 V
9A
Rated operation current Ie at AC-1, 400 V
22A
Rated operation power at AC-4, 400 V
2.5kW
Rated operation power at AC-3, 400 V
4kW
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
