Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Number of normally open contacts as main contact3
Rated control supply voltage Us at AC 60HZ0 - 0V
Rated control supply voltage Us at DC0 - 0V
Voltage type for actuatingAC
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-4, 400 V6A
Rated operation power at AC-4, 400 V2.5kW
Width45mm
Modular versionNo
Depth75mm
Rated operation power NEMA3.7kW
Height68mm
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V9A
Rated control supply voltage Us at AC 50HZ48 - 48V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

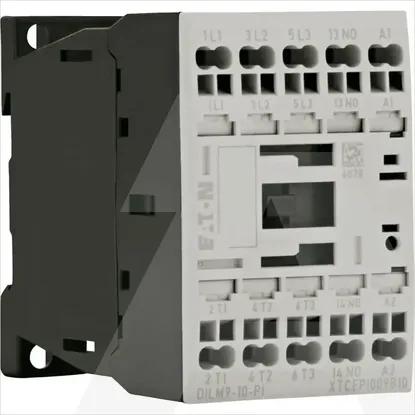

DILM9-10(48V50HZ)-PI | Contactor 9A/4kW AC-3, 22A AC-1, 3pole+1no, Push-In terminals, Uc=48/50Hz
