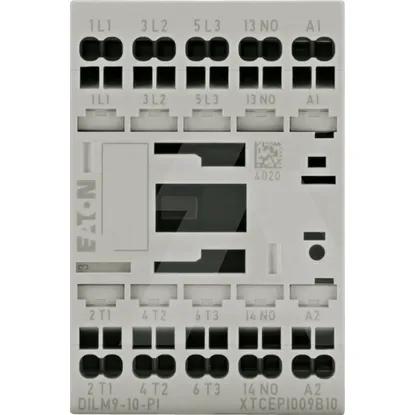

DILM9-10(48VDC)-PI | Contactor 9A/4kW AC-3, 22A AC-1, 3pole+1no, Push-In terminals, Uc=48V DC
Code: 2034711
ManufacturerEaton
Catalog numberEP-401307
TypePower contactor, AC switching
CategoryPower contactor, AC switching
EAN code4015082967727
Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Rated control supply voltage Us at AC 60HZ0 - 0V
Voltage type for actuatingDC
Rated control supply voltage Us at DC48 - 48V
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Type of electrical connection of main circuitSpring clamp connection
Rated operation current Ie at AC-4, 400 V6A
Rated operation power at AC-4, 400 V2.5kW
Operating voltage at AC 60 Hz24 - 690V
Operating voltage at AC 50 Hz24 - 690V
Rated operation current Ie at AC-1, 400 V22A
Rated operation power NEMA3.7kW
Modular versionNo
Width45mm
Depth75mm
Height68mm
Rated operation power at AC-3, 400 V4kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact0
Rated operation current Ie at AC-3, 400 V9A
Rated control supply voltage Us at AC 50HZ0 - 0V
