Details
- •Low-voltage industrial components
- •Power contactor, AC switching
- •1 KOM
- •EATON
Technical specifications
Rated control supply voltage Us at AC 50HZ220 - 220V
Rated control supply voltage Us at AC 60HZ220 - 220V
Voltage type for actuatingAC
Rated control supply voltage Us at DC0 - 0V
Number of normally closed contacts as main contact0
Number of normally open contacts as main contact4
Operating voltage at AC 50 Hz24 - 690V
Type of electrical connection of main circuitSpring clamp connection
Rated operation current Ie at AC-1, 400 V22A
Rated operation current Ie at AC-3, 400 V12A
Operating voltage at AC 60 Hz24 - 690V
Rated operation current Ie at AC-4, 400 V10A
Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally closed contact0
Rated operation power NEMA0kW
Rated operation power at AC-4, 400 V4.5kW
Modular versionNo
Height68mm
Number of auxiliary contacts as normally open contact0
Width45mm
Depth75mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

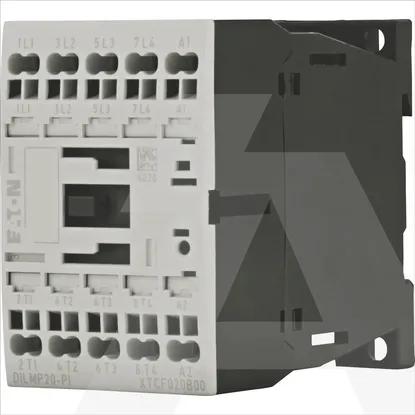

DILMP20(220V50/60HZ)-PI | Contactor 4-pole, Push-in terminals, 20A AC-1, Uc=220V/50Hz, 220V/60Hz
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power contactor, AC switching
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated control supply voltage Us at AC 50HZ
220 .. 220V
Rated control supply voltage Us at AC 60HZ
220 .. 220V
Voltage type for actuating
AC
Rated control supply voltage Us at DC
0 .. 0V
Number of normally closed contacts as main contact
0
Number of normally open contacts as main contact
4
Operating voltage at AC 50 Hz
24 .. 690V
Type of electrical connection of main circuit
Spring clamp connection
Rated operation current Ie at AC-1, 400 V
22A
Rated operation current Ie at AC-3, 400 V
12A
Operating voltage at AC 60 Hz
24 .. 690V
Rated operation current Ie at AC-4, 400 V
10A
Rated operation power at AC-3, 400 V
5.5kW
Number of auxiliary contacts as normally closed contact
0
Rated operation power NEMA
0kW
Rated operation power at AC-4, 400 V
4.5kW
Modular version
Height
68mm
Number of auxiliary contacts as normally open contact
0
Width
45mm
Depth
75mm
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
