Details

  • •Low-voltage industrial components
  • •Frequency converter =< 1 kV
  • •1 KOM
  • •EATON

Technical specifications

Mains voltage525 - 600V
Number of HW-interfaces other1
With optical interfaceNo
With PC connectionYes
Mains frequency50/60 Hz
Number of phases output3
Number of phases input3
Max. output frequency400Hz
Nominal output current I2N13.5A
Max. output voltage600V
Max. output at quadratic load at rated output voltage11kW
Max. output at linear load at rated output voltage7.5kW
Power consumption275W
Relative symmetric net voltage tolerance10%
Relative symmetric net frequency tolerance10%
Number of analogue outputs1
Application in domestic- and commercial area permittedYes
Application in industrial area permittedYes
Number of analogue inputs1
Supporting protocol for TCP/IPYes
Number of digital inputs4
With control elementYes
Supporting protocol for PROFIBUSYes
Number of digital outputs0
Integrated breaking resistanceYes
Type of converterU converter
Degree of protection (IP)IP20
Degree of protection (NEMA)Other
4-quadrant operation possibleYes
Width130mm
Height260mm
Depth180mm
Supporting protocol for PROFINET CBANo
Supporting protocol for PROFINET IONo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for EtherNet/IPYes
Supporting protocol for SERCOSNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for Foundation FieldbusNo
Number of interfaces PROFINET0
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for SUCONETNo
Number of HW-interfaces industrial Ethernet1
Number of HW-interfaces RS-2320
Supporting protocol for BACnetYes
Supporting protocol for other bus systemsYes
Supporting protocol for CANYes
Supporting protocol for INTERBUSNo
Supporting protocol for ASINo
Supporting protocol for ModbusYes
Supporting protocol for Data-HighwayNo
Supporting protocol for LONNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4220
Supporting protocol for PROFIsafeNo
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4851
Number of HW-interfaces USB0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

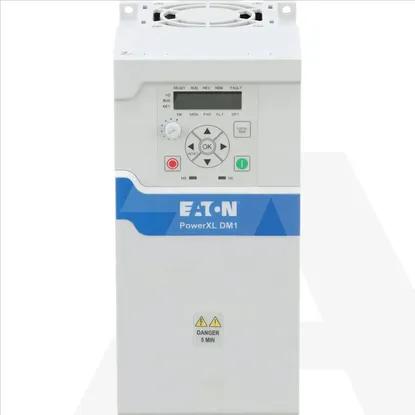

DM1-35013NB-S20S-EM | Frequency invertor 3x600/3x600VAC, Ph=7,5kW, Ih=13,5A, Pl=11kW, Il=18A IP20

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Frequency converter =< 1 kV
  • 1 KOM
  • EATON

Technical specifications

Mains voltage

525 .. 600V

Number of HW-interfaces other

1

With optical interface

With PC connection

Mains frequency

50/60 Hz

Number of phases output

3

Number of phases input

3

Max. output frequency

400Hz

Nominal output current I2N

13.5A

Max. output voltage

600V

Max. output at quadratic load at rated output voltage

11kW

Max. output at linear load at rated output voltage

7.5kW

Power consumption

275W

Relative symmetric net voltage tolerance

10%

Relative symmetric net frequency tolerance

10%

Number of analogue outputs

1

Application in domestic- and commercial area permitted

Application in industrial area permitted

Number of analogue inputs

1

Supporting protocol for TCP/IP

Number of digital inputs

4

With control element

Supporting protocol for PROFIBUS

Number of digital outputs

0

Integrated breaking resistance

Type of converter

U converter

Degree of protection (IP)

IP20

Degree of protection (NEMA)

Other

4-quadrant operation possible

Width

130mm

Height

260mm

Depth

180mm

Supporting protocol for PROFINET CBA

Supporting protocol for PROFINET IO

Supporting protocol for AS-Interface Safety at Work

Supporting protocol for EtherNet/IP

Supporting protocol for SERCOS

Supporting protocol for INTERBUS-Safety

Supporting protocol for Foundation Fieldbus

Number of interfaces PROFINET

0

Supporting protocol for DeviceNet Safety

Supporting protocol for SafetyBUS p

Supporting protocol for SUCONET

Number of HW-interfaces industrial Ethernet

1

Number of HW-interfaces RS-232

0

Supporting protocol for BACnet

Supporting protocol for other bus systems

Supporting protocol for CAN

Supporting protocol for INTERBUS

Supporting protocol for ASI

Supporting protocol for Modbus

Supporting protocol for Data-Highway

Supporting protocol for LON

Supporting protocol for KNX

Supporting protocol for DeviceNet

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-422

0

Supporting protocol for PROFIsafe

Number of HW-interfaces parallel

0

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

0
