Details
- •Programmable logic controllers PLC
- •Graphic panel
- •1 KOM
- •EATON
Technical specifications
Supply voltage AC 60 Hz0 - 0V
Supply voltage DC19.2 - 30V
Supply voltage AC 50 Hz0 - 0V
Voltage type of supply voltageDC
Power consumption7.2W
Number of HW-interfaces industrial Ethernet1
Number of interfaces PROFINET0
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
Number of pixels, horizontal272
Number of pixels, vertical480
With numeric keyboardNo
With alpha numeric keyboardYes
Number of function buttons, programmable0
Number of buttons with LED0
Useful project memory/user memory0kByte
Number of system buttons1
Touch technologyResistive touch
With message indicationNo
With message system (incl. buffer and confirmation)No
Process value representation (output) possibleNo
Process default value (input) possibleNo
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4850
Number of HW-interfaces USB1
Number of HW-interfaces parallel0
Number of HW-interfaces Wireless0
With SW interfacesNo
Supporting protocol for PROFIBUSNo
Supporting protocol for EtherCATNo
Supporting protocol for TCP/IPNo
Supporting protocol for CANNo
Number of HW-interfaces other0
Supporting protocol for ASINo
Supporting protocol for INTERBUSNo
Supporting protocol for KNXNo
Supporting protocol for DeviceNetNo
Supporting protocol for Data-HighwayNo
Supporting protocol for ModbusNo
Supporting protocol for LONNo
Supporting protocol for SUCONETNo
Supporting protocol for PROFINET IONo
Supporting protocol for SERCOSNo
Supporting protocol for Foundation FieldbusNo
Supporting protocol for PROFINET CBANo
Supporting protocol for AS-Interface Safety at WorkNo
Supporting protocol for DeviceNet SafetyNo
Supporting protocol for EtherNet/IPNo
Supporting protocol for PROFIsafeNo
Supporting protocol for INTERBUS-SafetyNo
Supporting protocol for SafetyBUS pNo
Supporting protocol for other bus systemsNo
Radio standard Wi-Fi 802.11No
Radio standard BluetoothNo
Radio standard GSMNo
Radio standard GPRSNo
With recipesNo
Number of password levels3
With printer outputNo
Number of online languages13
Additional software components, loadableNo
Degree of protection (NEMA), front side4X
Certified for UL hazardous location class INo
Certified for UL hazardous location class IINo
Degree of protection (IP), front sideIP65
IO link masterNo
Certified for UL hazardous location class IIINo
Certified for UL hazardous location division 1No
Certified for UL hazardous location division 2No
Certified for UL hazardous location group A (acetylene)No
Certified for UL hazardous location group B (hydrogen)No
Certified for UL hazardous location group D (propane)No
Certified for UL hazardous location group C (ethylene)No
Certified for UL hazardous location group E (metal dusts)No
Certified for UL hazardous location group F (carbonaceous dusts)No
Certified for UL hazardous location group G (non-conductive dusts)No
Operating temperature0 - 50°C
Suitable for safety functionsNo
Wall mounting/direct mountingNo
Rail mounting possibleNo
Width of the front136mm
Height of the front101mm
Built-in depth38mm
Type of displayTFT
With colour displayYes
Number of colours of the display64000
Radio standard UMTSNo
Screen diagonal4.3inch
Number of grey-scales/blue-scales of display0
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

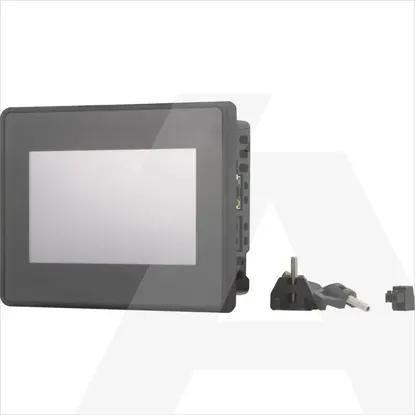

EASY-RTD-DC-43-03B2-00 | Touch panel 4,3 color for EASYE4 programmable remote touch display
