Details
- •Relays
- •Device for monitoring of safety-related circuits
- •1 KOM
- •EATON
Technical specifications
ModelBasic device
Rail mounting possibleYes
With detachable clampsYes
Voltage type of supply voltageDC
Type of electric connectionScrew connection
Supply voltage AC 60 Hz0 - 0V
Supply voltage AC 50 Hz0 - 0V
Supply voltage DC0 - 24V
Suitable for monitoring of position switchesYes
Suitable for monitoring of emergency-stop circuitsYes
Suitable for monitoring of valvesNo
Suitable for monitoring of magnetic switchesYes
Suitable for monitoring of tactile sensorsNo
Suitable for monitoring of optoelectronic protection equipmentYes
Suitable for monitoring of proximity switchesYes
Evaluation inputsOne- and two-channel
Power consumption16.44W
With start inputYes
With muting functionNo
With feedback circuitYes
Number of outputs, safety related, undelayed, with contact3
Type of control voltage 1DC
Release-delay0 - 0s
Control voltage 124 - 26.4V
Number of outputs, safety related, delayed, with contact0
Number of outputs, safety related, undelayed, semiconductors0
Number of outputs, safety related, delayed, semiconductors0
Number of outputs, signalling function, undelayed, with contact1
Number of outputs, signalling function, delayed, semiconductors0
Number of outputs, signalling function, delayed, with contact0
Rated switch current6A
Operating voltage at DC24 - 26.4V
Voltage type (operating voltage)DC
Type of safety according to IEC 61496-1None
Number of outputs, signalling function, undelayed, semiconductors0
Stop category according to IEC 602040
SIL according to IEC 615083
Performance level according to EN ISO 13849-1Level e
Width22.5mm
With approval for BG BIANo
Depth114.5mm
With approval according to ULYes
With approval for TÜVYes
Height112.2mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

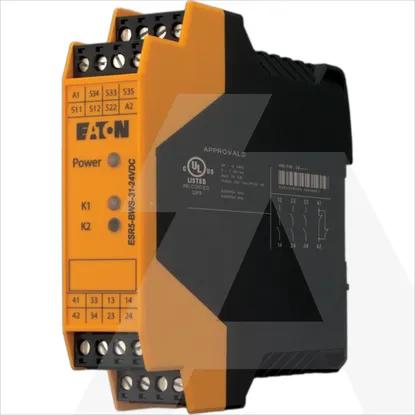

ESR5-BWS-31-24VDC | Electronic safety relay, 24V DC, 3 NO and 1 NC cont, dual-channel, PL e, for
