Details
- •Relays
- •Solid state relay
- •1 KOM
- •EATON
Technical specifications
Type of electric connectionScrew connection
Rated control supply voltage Us at AC 60HZ20 - 275V
With LED indicationYes
Rated control supply voltage Us at AC 50HZ20 - 275V
Rated operation current Ie at AC-10A
Number of phases3
Voltage type (operating voltage)AC
Switching at zero-crossingYes
Voltage type for actuatingAC/DC
Rated control supply voltage Us at DC24 - 190V
ModelOther
Operating voltage at DC0 - 0V
Operating voltage at AC 60 Hz42 - 600V
Depth126mm
Complete with socketNo
Modular versionYes
With detachable clampsNo
Width72mm
Rated operation current Ie at AC-5130A
Rated operation current Ie at AC-30A
Rated operation current Ie at AC-53b0A
Operating voltage at AC 50 Hz42 - 600V
Height110mm
Rated operation current Ie at AC-53a14A
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

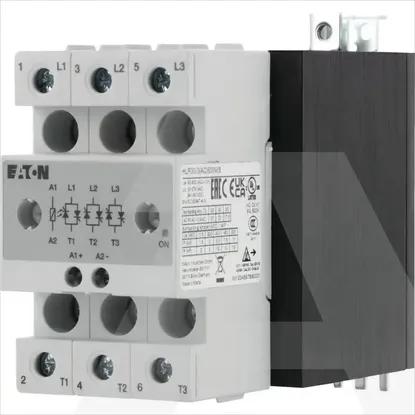

HLR30/3(AC)600V/S | Solid state relay, 3-poles, Un=600V AC, Io=30A, Uc=20-275V AC / 24-190V DC, I2T
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Relays
- Solid state relay
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Type of electric connection
Screw connection
Rated control supply voltage Us at AC 60HZ
20 .. 275V
With LED indication
Rated control supply voltage Us at AC 50HZ
20 .. 275V
Rated operation current Ie at AC-1
0A
Number of phases
3
Voltage type (operating voltage)
AC
Switching at zero-crossing
Voltage type for actuating
AC/DC
Rated control supply voltage Us at DC
24 .. 190V
Model
Other
Operating voltage at DC
0 .. 0V
Operating voltage at AC 60 Hz
42 .. 600V
Depth
126mm
Complete with socket
Modular version
With detachable clamps
Width
72mm
Rated operation current Ie at AC-51
30A
Rated operation current Ie at AC-3
0A
Rated operation current Ie at AC-53b
0A
Operating voltage at AC 50 Hz
42 .. 600V
Height
110mm
Rated operation current Ie at AC-53a
14A
Degree of protection (IP)
IP20
