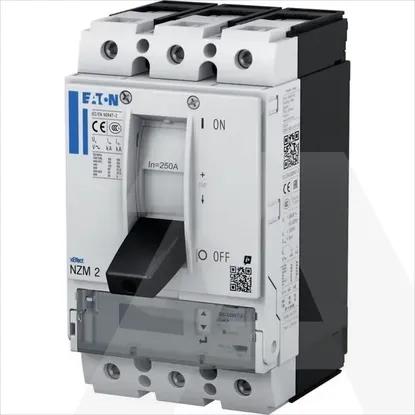

NZMH2-PMX140-NA | Circuit-breaker, 3p, Ic=100kA(480V), In=140A, motor.prot, PXR25(LSI), fixed,
Code: 2036439
ManufacturerEaton
Catalog number192584
TypeMotor protection circuit-breaker
CategoryMotor protection circuit-breaker
EAN code4015081933129
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Adjustment range undelayed short-circuit release280 - 2520A
Switch off techniqueElectronic
With thermal protectionYes
Phase failure sensitiveYes
Rated operating voltage690 - 690V
Power loss16.17W
Rated operation power at AC-3, 230 V45kW
Type of electrical connection of main circuitScrew connection
With integrated auxiliary switchNo
Type of control elementRocker lever
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Height195mm
Device constructionBuilt-in device fixed built-in technique
Width105mm
Depth149mm
Rated operation power at AC-3, 400 V75kW
Rated permanent current Iu140A
Number of poles3
Overload release current setting56 - 140A
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
