Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
With thermal protectionYes
Adjustment range undelayed short-circuit release400 - 3000A
Phase failure sensitiveYes
Switch off techniqueElectronic
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V55kW
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchNo
Type of control elementRocker lever
With integrated under voltage releaseNo
Power loss33W
Degree of protection (IP)IP20
Width105mm
Height195mm
Depth149mm
Rated operation power at AC-3, 400 V110kW
Rated permanent current Iu200A
Number of poles3
Overload release current setting88 - 220A
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

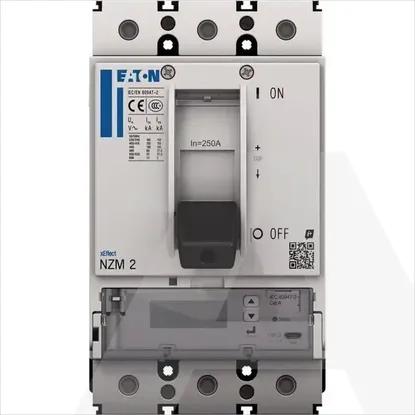

NZMH2-PMX200-NA | Circuit-breaker, 3p, Ic=100kA(480V), In=200A, motor.prot, PXR25(LSI), fixed,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
With thermal protection
Adjustment range undelayed short-circuit release
400 .. 3000A
Phase failure sensitive
Switch off technique
Electronic
Rated operating voltage
690 .. 690V
Rated operation power at AC-3, 230 V
55kW
Type of electrical connection of main circuit
Screw connection
Device construction
Built-in device fixed built-in technique
With integrated auxiliary switch
Type of control element
Rocker lever
With integrated under voltage release
Power loss
33W
Degree of protection (IP)
IP20
Width
105mm
Height
195mm
Depth
149mm
Rated operation power at AC-3, 400 V
110kW
Rated permanent current Iu
200A
Number of poles
3
Overload release current setting
88 .. 220A
Rated short-circuit breaking capacity lcu at 400 V, AC
130kA
