Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Overload release current setting100 - 250A
With thermal protectionYes
Phase failure sensitiveYes
Adjustment range undelayed short-circuit release500 - 4500A
Switch off techniqueElectronic
Rated operating voltage690 - 690V
Rated permanent current Iu250A
Rated operation power at AC-3, 230 V110kW
Rated operation power at AC-3, 400 V132kW
Type of electrical connection of main circuitScrew connection
Height275mm
Type of control elementRocker lever
With integrated under voltage releaseNo
Device constructionBuilt-in device fixed built-in technique
Degree of protection (IP)IP20
Width140mm
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
With integrated auxiliary switchNo
Depth166mm
Number of poles3
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

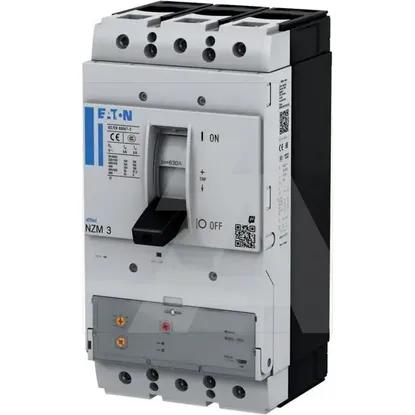

NZMH3-MX250-NA | Circuit-breaker, 3p, Ic=100kA(480V), In=250A, motor.prot, PXR20(LSI), fixed,
