Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Adjustment range undelayed short-circuit release700 - 5250A
With thermal protectionYes
Phase failure sensitiveYes
Switch off techniqueElectronic
Rated operating voltage690 - 690V
Type of control elementRocker lever
Rated operation power at AC-3, 230 V110kW
Type of electrical connection of main circuitScrew connection
Device constructionBuilt-in device fixed built-in technique
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Depth166mm
Height275mm
Width140mm
Rated operation power at AC-3, 400 V200kW
Rated permanent current Iu350A
Number of poles3
Overload release current setting175 - 350A
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

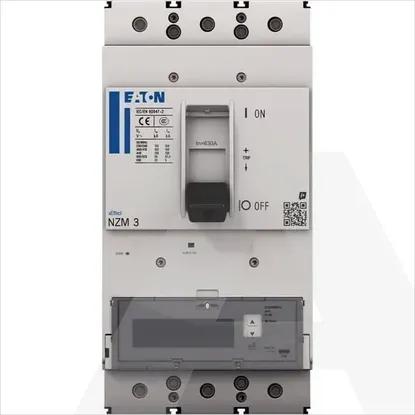

NZMH3-PMX350-NA | Circuit-breaker, 3p, Ic=100kA(480V), In=350A, motor.prot, PXR25(LSI), fixed,
