Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Overload release current setting180 - 450A
Rated operation power at AC-3, 230 V132kW
Rated permanent current Iu450A
Adjustment range undelayed short-circuit release2 - 12A
Rated operating voltage690 - 690V
With thermal protectionYes
Type of control elementRocker lever
Type of electrical connection of main circuitOther
Switch off techniqueElectronic
Rated operation power at AC-3, 400 V250kW
Device constructionBuilt-in device plug-in technique
Phase failure sensitiveYes
Number of poles3
Height215.2mm
Rated short-circuit breaking capacity lcu at 400 V, AC130kA
Depth335mm
With integrated under voltage releaseNo
With integrated auxiliary switchNo
Width140mm
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

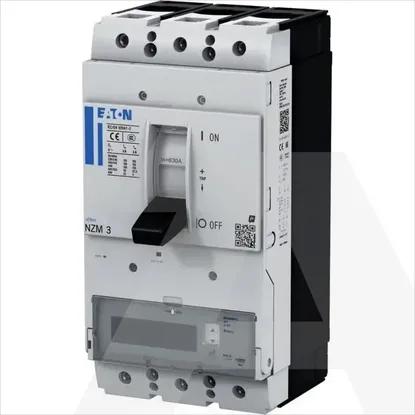

NZMH3-PMX450-SVE | Circuit-breaker, 3p, Icu=150kA(415V), In=450A, motor.prot, PXR25(LSI), plug-in
