Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Overload release current setting560 - 1400A
With thermal protectionYes
Phase failure sensitiveYes
Switch off techniqueElectronic
Adjustment range undelayed short-circuit release2 - 14A
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V450kW
Rated permanent current Iu1400A
Rated operation power at AC-3, 400 V800kW
Type of electrical connection of main circuitScrew connection
With integrated under voltage releaseNo
Width210mm
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
Degree of protection (IP)IP20
Height170mm
Number of poles3
Device constructionBuilt-in device fixed built-in technique
Depth375mm
With integrated auxiliary switchNo
Type of control elementRocker lever
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

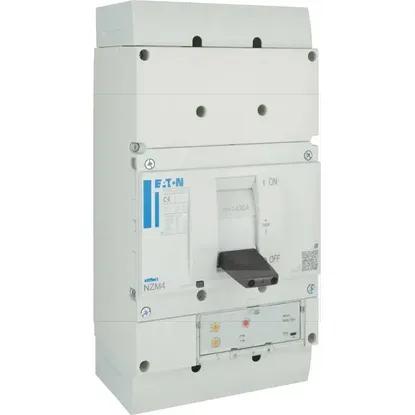

NZMH4-MX1400 | Circuit-breaker, 3p, Icu=75kA(415V), In=1400A, motor.prot, PXR20(LSI), fixed,
