NZMH4-PMX1400 | Circuit-breaker, 3p, Icu=75kA(415V), In=1400A, motor.prot, PXR25(LSI), fixed,
Code: 2036564
ManufacturerEaton
Catalog number189686
TypeMotor protection circuit-breaker
CategoryMotor protection circuit-breaker
EAN code4015081876334
Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Adjustment range undelayed short-circuit release2 - 14A
With thermal protectionYes
Rated operating voltage690 - 690V
Phase failure sensitiveYes
Switch off techniqueElectronic
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 230 V450kW
Type of electrical connection of main circuitScrew connection
Type of control elementRocker lever
With integrated auxiliary switchNo
With integrated under voltage releaseNo
Degree of protection (IP)IP20

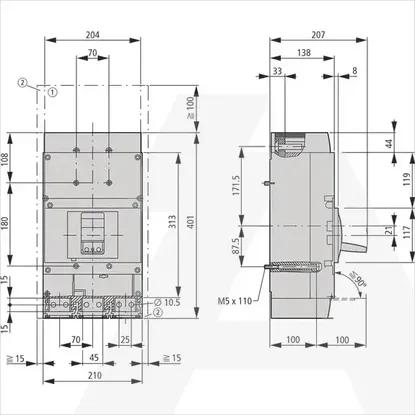

Width210mm
Height170mm
Depth375mm
Rated operation power at AC-3, 400 V800kW
Rated permanent current Iu1400A
Number of poles3
Overload release current setting560 - 1400A
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
NZMH4-PMX1400 | Circuit-breaker, 3p, Icu=75kA(415V), In=1400A, motor.prot, PXR25(LSI), fixed,
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Motor protection circuit-breaker
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Adjustment range undelayed short-circuit release
2 .. 14A
With thermal protection
Rated operating voltage
690 .. 690V
Phase failure sensitive
Switch off technique
Electronic
Device construction
Built-in device fixed built-in technique
Rated operation power at AC-3, 230 V
450kW
Type of electrical connection of main circuit
Screw connection
Type of control element
Rocker lever
With integrated auxiliary switch
With integrated under voltage release
Degree of protection (IP)
IP20
Width
210mm
Height
170mm
Depth
375mm
Rated operation power at AC-3, 400 V
800kW
Rated permanent current Iu
1400A
Number of poles
3
Overload release current setting
560 .. 1400A
Rated short-circuit breaking capacity lcu at 400 V, AC
50kA
