Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Adjustment range undelayed short-circuit release400 - 3000A
With thermal protectionYes
Phase failure sensitiveYes
Switch off techniqueElectronic
Rated operating voltage690 - 690V
Rated operation power at AC-3, 230 V55kW
Type of electrical connection of main circuitOther
Power loss33W
Type of control elementRocker lever
With integrated auxiliary switchNo
Device constructionBuilt-in device fixed built-in technique
With integrated under voltage releaseNo
Degree of protection (IP)IP20
Height195mm
Width105mm
Depth149mm
Rated operation power at AC-3, 400 V110kW
Rated permanent current Iu200A
Number of poles3
Overload release current setting80 - 200A
Rated short-circuit breaking capacity lcu at 400 V, AC50kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

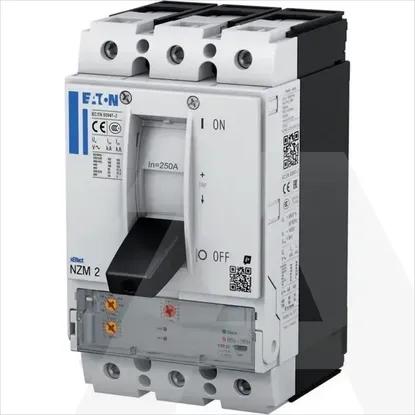

NZMN2-MX200-BT-NA | Circuit-breaker, 3p, Ic=35kA(480V), In=200A, motor.prot, PXR20(LSI), fixed,
