Details
- •Low-voltage industrial components
- •Motor protection circuit-breaker
- •1 KOM
- •EATON
Technical specifications
Overload release current setting100 - 250A
Adjustment range undelayed short-circuit release500 - 4500A
Phase failure sensitiveYes
With thermal protectionYes
Rated operation power at AC-3, 230 V110kW
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Type of control elementRocker lever
Rated operation power at AC-3, 400 V200kW
Rated short-circuit breaking capacity lcu at 400 V, AC35kA
With integrated auxiliary switchNo
Number of poles3
Degree of protection (IP)IP20
Width140mm
With integrated under voltage releaseNo
Depth166mm
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu250A
Switch off techniqueElectronic
Height275mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

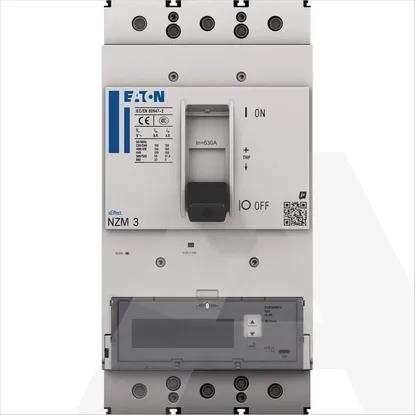

NZMN3-PMX250-NA | Circuit-breaker, 3p, Ic=42kA(480V), In=250A, motor.prot, PXR25(LSI), fixed,
