Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1000A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Overload release current setting400 - 1000A
Adjustment range short-term delayed short-circuit release2 - 10A
Adjustment range undelayed short-circuit release2 - 18A
Integrated earth fault protectionNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorNo
Number of poles3
Position of connection for main current circuitFront side
With integrated under voltage releaseNo
Type of control elementRocker lever
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP20
Complete device with protection unitYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

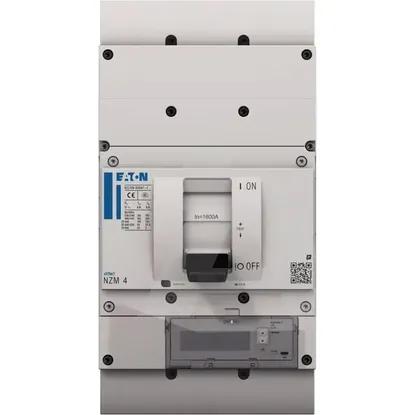

NZMN4-PX1000 | Circuit-breaker, 3p, Icu=50kA(415V), In=1000A, selective, PXR25 (lsi), fixed,
