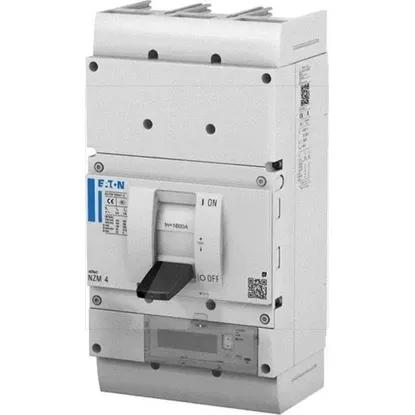

NZMN4-PX1250-TAZ | Circuit-breaker, 3p, Icu=50kA(415V), In=1250A, selective, PXR25 (lsig,arms,zsi),
Code: 2036770
ManufacturerEaton
Catalog number189614
TypePower circuit-breaker for trafo/generator/installation protection
EAN code4015081875610
Details
- •fixed, screw.term
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Adjustment range undelayed short-circuit release2500 - 37500A
Device constructionBuilt-in device fixed built-in technique
Adjustment range short-term delayed short-circuit release2 - 10A
Type of electrical connection of main circuitScrew connection
Integrated earth fault protectionYes
Overload release current setting500 - 1250A
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
With integrated under voltage releaseNo
Position of connection for main current circuitFront side
Type of control elementRocker lever
Complete device with protection unitYes
Motor drive integratedNo
Motor drive optionalYes
Degree of protection (IP)IP20
Rated permanent current Iu1250A
Number of poles3
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
