Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1600A
Overload release current setting640 - 1600A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release2 - 10A
Adjustment range undelayed short-circuit release3200 - 38400A
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Position of connection for main current circuitConnection at separate chassis part
Number of poles3
Complete device with protection unitYes
With integrated under voltage releaseNo
Motor drive optionalYes
Motor drive integratedNo
Degree of protection (IP)IP20
Type of control elementRocker lever
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

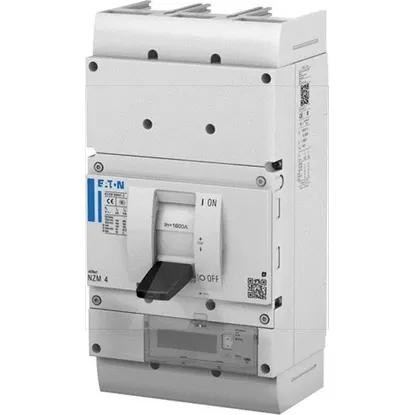

NZMN4-PX1600-AVE | Circuit-breaker, 3p, Icu=50kA(415V), In=1600A, selective, PXR25 (lsi),
