Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •EATON

Technical specifications

Rated permanent current Iu1250A
Number of auxiliary contacts as change-over contact0
Rated voltage690 - 690V
Device constructionBuilt-in device fixed built-in technique
Adjustment range undelayed short-circuit release2500 - 37500A
Number of auxiliary contacts as normally closed contact0
Adjustment range short-term delayed short-circuit release2 - 10A
Overload release current setting500 - 1250A
Suitable for DIN rail (top hat rail) mountingNo
DIN rail (top hat rail) mounting optionalNo
Position of connection for main current circuitFront side
With switched-off indicatorNo
With integrated under voltage releaseNo
Number of auxiliary contacts as normally open contact0
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Number of poles3
Complete device with protection unitYes
Type of control elementRocker lever
Degree of protection (IP)IP20
Motor drive optionalYes
Motor drive integratedNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NZMN4-VX1250 | Circuit-breaker, 3p, Icu=50kA(415V), In=1250A, selective, PXR20 (lsi), fixed,

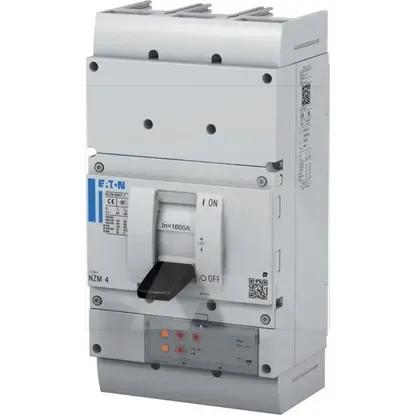

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • EATON

Technical specifications

Rated permanent current Iu

1250A

Number of auxiliary contacts as change-over contact

0

Rated voltage

690 .. 690V

Device construction

Built-in device fixed built-in technique

Adjustment range undelayed short-circuit release

2500 .. 37500A

Number of auxiliary contacts as normally closed contact

0

Adjustment range short-term delayed short-circuit release

2 .. 10A

Overload release current setting

500 .. 1250A

Suitable for DIN rail (top hat rail) mounting

DIN rail (top hat rail) mounting optional

Position of connection for main current circuit

Front side

With switched-off indicator

With integrated under voltage release

Number of auxiliary contacts as normally open contact

0

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

37kA

Integrated earth fault protection

Type of electrical connection of main circuit

Screw connection

Number of poles

3

Complete device with protection unit

Type of control element

Rocker lever

Degree of protection (IP)

IP20

Motor drive optional

Motor drive integrated

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
