Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu1250A
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Overload release current setting500 - 1250A
Adjustment range short-term delayed short-circuit release2 - 10A
Adjustment range undelayed short-circuit release2500 - 37500A
Device constructionBuilt-in device slide-in technique (withdrawable)
Integrated earth fault protectionNo
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitOther
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Position of connection for main current circuitFront side
Type of control elementRocker lever
Number of poles3
Complete device with protection unitYes
Degree of protection (IP)IP20
Motor drive integratedNo
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

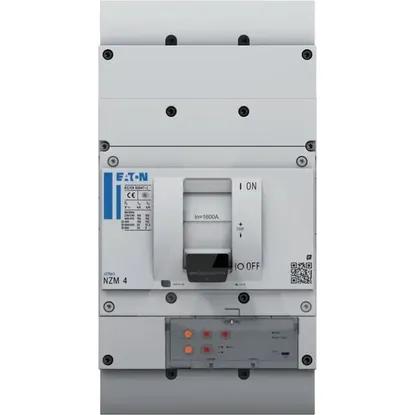

NZMN4-VX1250-AVE | Circuit-breaker, 3p, Icu=50kA(415V), In=1250A, selective, PXR20 (lsi),
