Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •EATON

Technical specifications

Rated permanent current Iu800A
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release1600 - 8000A
Overload release current setting320 - 800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz50kA
Adjustment range undelayed short-circuit release2 - 18A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally closed contact0
Suitable for DIN rail (top hat rail) mountingNo
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
Number of poles3
Type of control elementRocker lever
Position of connection for main current circuitFront side
Motor drive integratedNo
Complete device with protection unitYes
Degree of protection (IP)IP20
Motor drive optionalYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NZMN4-VX800-NA | Circuit-breaker, 3p, Ic=42kA(480V), In=800A, selective, PXR20 (lsi), fixed,

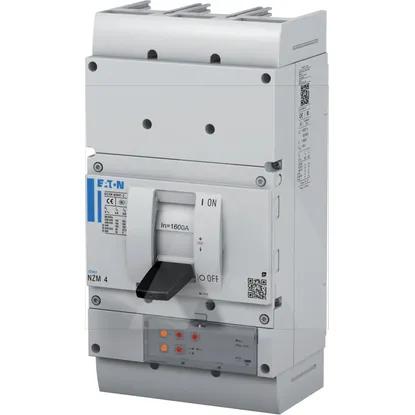

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • EATON

Technical specifications

Rated permanent current Iu

800A

Rated voltage

690 .. 690V

Adjustment range short-term delayed short-circuit release

1600 .. 8000A

Overload release current setting

320 .. 800A

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

50kA

Adjustment range undelayed short-circuit release

2 .. 18A

Device construction

Built-in device fixed built-in technique

Integrated earth fault protection

Type of electrical connection of main circuit

Screw connection

DIN rail (top hat rail) mounting optional

Number of auxiliary contacts as normally closed contact

0

Suitable for DIN rail (top hat rail) mounting

With switched-off indicator

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

With integrated under voltage release

Number of poles

3

Type of control element

Rocker lever

Position of connection for main current circuit

Front side

Motor drive integrated

Complete device with protection unit

Degree of protection (IP)

IP20

Motor drive optional

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
