Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •EATON

Technical specifications

Rated permanent current Iu800A
Overload release current setting400 - 800A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz37kA
Rated voltage690 - 690V
Adjustment range short-term delayed short-circuit release2 - 10A
Adjustment range undelayed short-circuit release2 - 18A
Device constructionBuilt-in device fixed built-in technique
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitScrew connection
Integrated earth fault protectionYes
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With switched-off indicatorNo
Number of poles3
Motor drive integratedNo
With integrated under voltage releaseNo
Type of control elementRocker lever
Complete device with protection unitYes
Position of connection for main current circuitFront side
Motor drive optionalYes
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

NZMN4-VX800-T | Circuit-breaker, 3p, Icu=50kA(415V), In=800A, selective, PXR20 (lsig), fixed,

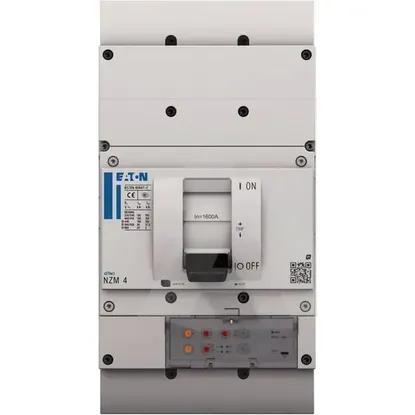

Main Product Image
