Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Adjustment range short-term delayed short-circuit release0 - 0A
Overload release current setting25 - 32A
Adjustment range undelayed short-circuit release350 - 350A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitFrame clamp
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalYes
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
With switched-off indicatorNo
Type of control elementRocker lever
With integrated under voltage releaseNo
Number of auxiliary contacts as change-over contact0
Position of connection for main current circuitFront side
Motor drive integratedNo
Motor drive optionalNo
Complete device with protection unitYes
Degree of protection (IP)IP20
Rated permanent current Iu32A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

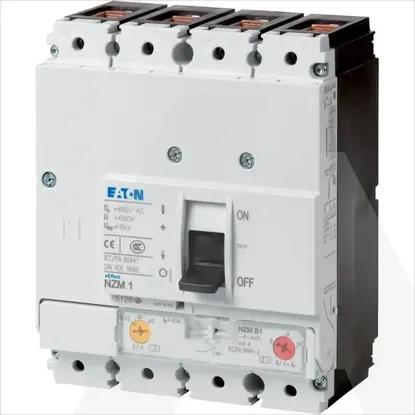

NZMS1-4-A32 | Circuit-breaker, 4p, Icu=70kA(415V), In=32A, circuit.prot, thermomag, fixed.mount,
