Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •EATON

Technical specifications

Rated permanent current Iu50A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Rated voltage690 - 690V
Overload release current setting25 - 50A
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release8 - 14A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Suitable for DIN rail (top hat rail) mountingNo
Type of electrical connection of main circuitFrame clamp
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
With switched-off indicatorNo
With integrated under voltage releaseNo
Complete device with protection unitYes
Type of control elementRocker lever
Number of poles3
Position of connection for main current circuitFront side
Motor drive optionalNo
Motor drive integratedNo
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

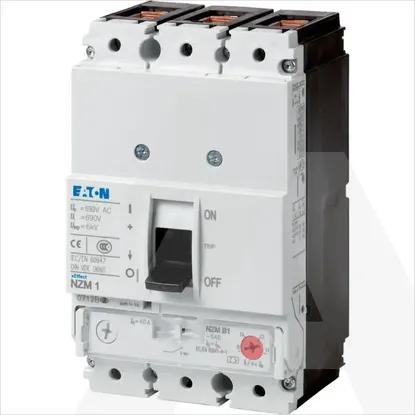

NZMS1-S50 | Circuit-breaker, 3p, Icu=70kA(415V), In=50A, no thermal, mag only, fixed, box.terminal

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • EATON

Technical specifications

Rated permanent current Iu

50A

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

70kA

Rated voltage

690 .. 690V

Overload release current setting

25 .. 50A

Adjustment range short-term delayed short-circuit release

0 .. 0A

Adjustment range undelayed short-circuit release

8 .. 14A

Device construction

Built-in device fixed built-in technique

Integrated earth fault protection

Suitable for DIN rail (top hat rail) mounting

Type of electrical connection of main circuit

Frame clamp

DIN rail (top hat rail) mounting optional

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

With switched-off indicator

With integrated under voltage release

Complete device with protection unit

Type of control element

Rocker lever

Number of poles

3

Position of connection for main current circuit

Front side

Motor drive optional

Motor drive integrated

Degree of protection (IP)

IP20

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
