Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Overload release current setting100 - 125A
Adjustment range short-term delayed short-circuit release0 - 0A
Device constructionBuilt-in device plug-in technique
Adjustment range undelayed short-circuit release6 - 10A
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
DIN rail (top hat rail) mounting optionalNo
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally open contact0
With integrated under voltage releaseNo
With switched-off indicatorNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Position of connection for main current circuitBack side
Degree of protection (IP)IP20
Complete device with protection unitYes
Motor drive integratedNo
Type of control elementRocker lever
Motor drive optionalYes
Rated permanent current Iu125A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

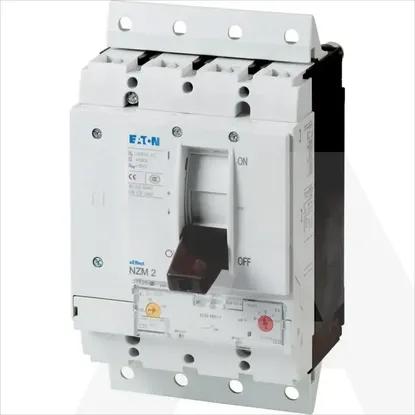

NZMS2-4-A125-SVE | Circuit-breaker, 4p, Icu=70kA(415V), In=125A, circuit.prot, thermomag, plug-in
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Overload release current setting
100 .. 125A
Adjustment range short-term delayed short-circuit release
0 .. 0A
Device construction
Built-in device plug-in technique
Adjustment range undelayed short-circuit release
6 .. 10A
Integrated earth fault protection
Type of electrical connection of main circuit
Screw connection
DIN rail (top hat rail) mounting optional
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
With switched-off indicator
Number of auxiliary contacts as change-over contact
0
Number of auxiliary contacts as normally closed contact
0
Position of connection for main current circuit
Back side
Degree of protection (IP)
IP20
Complete device with protection unit
Motor drive integrated
Type of control element
Rocker lever
Motor drive optional
Rated permanent current Iu
125A
Number of poles
4
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70kA
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
