Details

  • •Low-voltage industrial components
  • •Power circuit-breaker for trafo/generator/installation protection
  • •1 KOM
  • •EATON

Technical specifications

Rated permanent current Iu200A
Rated voltage690 - 690V
Overload release current setting160 - 200A
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
Adjustment range short-term delayed short-circuit release0 - 0A
Adjustment range undelayed short-circuit release6 - 10A
Device constructionBuilt-in device fixed built-in technique
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalYes
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Suitable for DIN rail (top hat rail) mountingNo
With integrated under voltage releaseNo
With switched-off indicatorNo
Number of poles4
Type of control elementRocker lever
Complete device with protection unitYes
Position of connection for main current circuitFront side
Motor drive optionalYes
Motor drive integratedNo
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

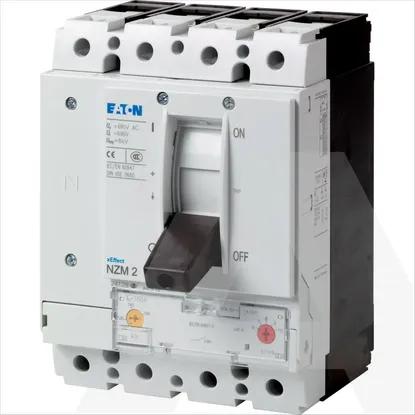

NZMS2-4-A200 | Circuit-breaker, 4p, Icu=70kA(415V), In=200A, circuit.prot, thermomag, fixed.mount,

Main Product Image

Why Register?

  • View wholesale prices with discounts
  • Real-time stock availability
  • Access invoices and dispatch notes
  • Order history and frequently ordered items
  • Exclusive B2B offers

and much more...

Details

  • Low-voltage industrial components
  • Power circuit-breaker for trafo/generator/installation protection
  • 1 KOM
  • EATON

Technical specifications

Rated permanent current Iu

200A

Rated voltage

690 .. 690V

Overload release current setting

160 .. 200A

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz

70kA

Adjustment range short-term delayed short-circuit release

0 .. 0A

Adjustment range undelayed short-circuit release

6 .. 10A

Device construction

Built-in device fixed built-in technique

Integrated earth fault protection

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as normally closed contact

0

DIN rail (top hat rail) mounting optional

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Suitable for DIN rail (top hat rail) mounting

With integrated under voltage release

With switched-off indicator

Number of poles

4

Type of control element

Rocker lever

Complete device with protection unit

Position of connection for main current circuit

Front side

Motor drive optional

Motor drive integrated

Degree of protection (IP)

IP20

VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
