Details
- •Low-voltage industrial components
- •Power circuit-breaker for trafo/generator/installation protection
- •1 KOM
- •EATON
Technical specifications
Overload release current setting160 - 200A
Adjustment range short-term delayed short-circuit release0 - 0A
Device constructionBuilt-in device plug-in technique
Adjustment range undelayed short-circuit release6 - 10A
Integrated earth fault protectionNo
Type of electrical connection of main circuitScrew connection
Suitable for DIN rail (top hat rail) mountingNo
Number of auxiliary contacts as normally closed contact0
DIN rail (top hat rail) mounting optionalNo
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
With integrated under voltage releaseNo
Position of connection for main current circuitBack side
Type of control elementRocker lever
Complete device with protection unitYes
Motor drive integratedNo
Degree of protection (IP)IP20
With switched-off indicatorNo
Motor drive optionalYes
Rated permanent current Iu200A
Number of poles4
Rated voltage690 - 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz70kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

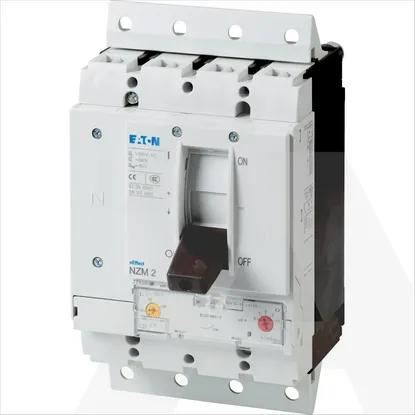

NZMS2-4-A200-SVE | Circuit-breaker, 4p, Icu=70kA(415V), In=200A, circuit.prot, thermomag, plug-in
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Overload release current setting
160 .. 200A
Adjustment range short-term delayed short-circuit release
0 .. 0A
Device construction
Built-in device plug-in technique
Adjustment range undelayed short-circuit release
6 .. 10A
Integrated earth fault protection
Type of electrical connection of main circuit
Screw connection
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as normally closed contact
0
DIN rail (top hat rail) mounting optional
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
With integrated under voltage release
Position of connection for main current circuit
Back side
Type of control element
Rocker lever
Complete device with protection unit
Motor drive integrated
Degree of protection (IP)
IP20
With switched-off indicator
Motor drive optional
Rated permanent current Iu
200A
Number of poles
4
Rated voltage
690 .. 690V
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
70kA
